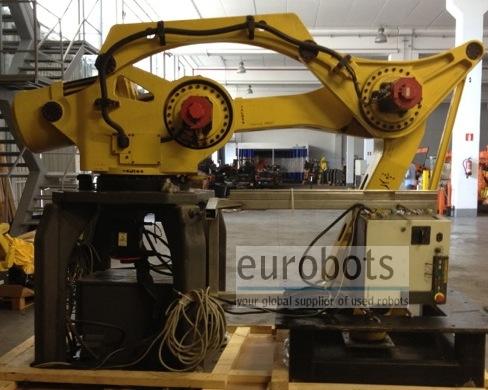

ファナック M-410iB-450パレタイジングロボット
Year 2003. Heavy payload 4 axis palletizing robot. The Fanuc M-410iB features an R-J3iB controller integrated into the base to save space and ease installation. Integration is further simplified through the use of dedicated pneumatic and electrical connections on the wrist for end-of-arm tooling. This heavy-duty robot was designed for palletizing and packaging applications.
Rj3iB controller features
- Quick change amplifier
- Fast boot time < 30 s
- PCMCIA Software distribution
- Easy connections to a variety of I/O
- Color teach pendant for even easier programming and custom cell user interface design.
Robot Info
• Maximum Load of Robot: 450 Kg
• Maximum Reach: 3143 mm
• Repeatability: 0,15 mm
• Controller: Rj3iB
Robot Motion Speed
• Axe 1: 70º/s
• Axe 2: 70º/s
• Axe 3: 70º/s
• Axe 4: 180º/s
Robot Applications:
• Machine tending
• Palletizing
