Epson LS6 SCARA Robots 700mm
Series SCARA robots Epson LS6 is known for its high output, wide range, high payload, handles high speeds with maximum accuracy, This series is a more profitable of Epson scara without sacrificing performance. handles payloads from 3 kg to 20 kg and cycle times that start at 0.38 seconds, this is a compact, high performance and low cost automation solution that offers great reliability.
The Epson series LS6 SCARA robot has an arm length of 700 mm, with a high efficiency in assembly processes, transfer of parts, and pick and place among other applications, with an optimal integration and continuous production quality, maximum speeds of 7450 mm / s. Provides a high return on investment and performance.

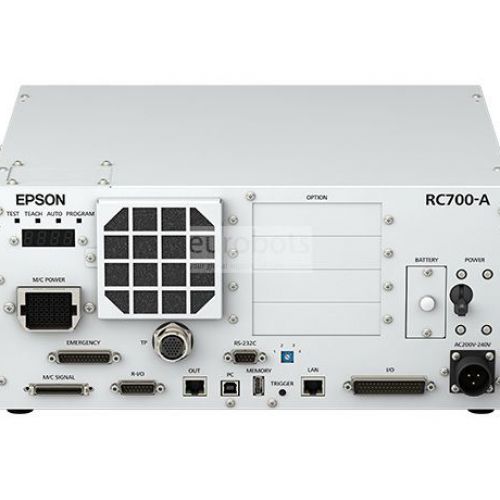

Equipped with the powerful and simple RC700A controller
Leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.
Robot Info:
- Maximum Load of Robot: 6 kg
- Maximum Reach: 700 mm
- Mounting type: Tabletop
- Controller: RC700A
Repeatability:
- Joint 1,2: ±0.02 mm
- Joint 3: ±0.01 mm
- Joint 4: ±0.01°
Robot Motion Speed:
- Joints 1,2: 7450 mm/s
- Joint 3: 1100 mm/s
- Joint 4: 2000°/s
Robot motion range:
- Joint 1: ±132°
- Joint 2: ±150°
- Joint 3 stnd: 200 mm
- Joint 3 Cleanroom model: 170 mm
- Joint 4: ±360°
Robot Applications:
- Automotive
- Medical
- Lab Automation
- Consumer Products
- Industrial Products
- Telecommunications
- Pharmaceutical
- Packaging
- Semiconductor
- Electronics
