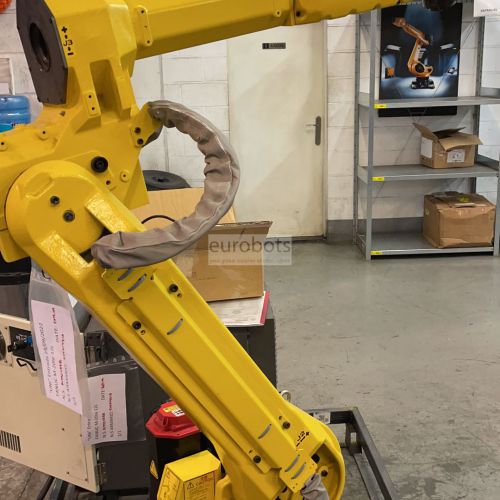

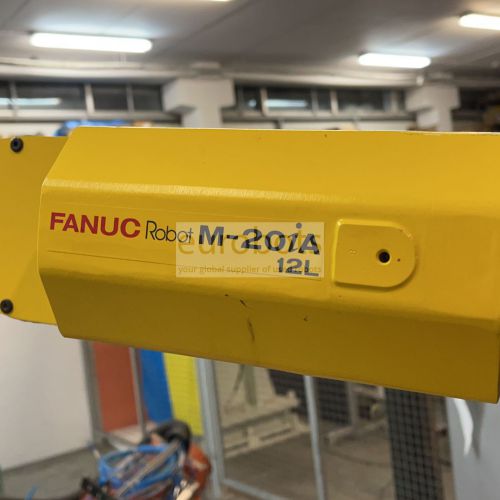

Fanuk M-20iA / 12L
The M-20 series of Fanuc arm and wrist hollow design specialized in multi-purpose work, this series is characterized by its useful load capacity, arm reach and speed. can handle up to a load of 35 kg with optimal performance, ideal for handling applications of different materials, They have a shelf on the back of the arm that provides easy installation of the peripheral equipment.
The M-20iA / 12L robot with long arm design for greater access, short cycle times, for greater speed, moments of high inertia thanks to the power that the hollow wrist offers for complex tools and assembly. It is ideal for a wide range of applications with optimal productivity.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 12 kg
Number of axis: 6
Maximum horizontal reach: 2009 mm
Repeatability: ± 0.04 mm
Controller: R30iB
Motion range (°)
Axis J1: 370°
Axis J2: 260°
Axis J3: 460,6°
Axis J4: 400°
Axis J5: 360°
Axis J6: 900°
Maximum Load of Robot: 12 kg
Number of axis: 6
Maximum horizontal reach: 2009 mm
Repeatability: ± 0.04 mm
Controller: R30iB
Motion range (°)
Axis J1: 370°
Axis J2: 260°
Axis J3: 460,6°
Axis J4: 400°
Axis J5: 360°
Axis J6: 900°
Maximum speed (°/s)
Axis J1: 200°/s
Axis J2: 175°/s
Axis J3: 190°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s
Axis J1: 200°/s
Axis J2: 175°/s
Axis J3: 190°/s
Axis J4: 430°/s
Axis J5: 430°/s
Axis J6: 630°/s
Robot applications
Handling Materials
Pick and Place
Handling Materials
Pick and Place
Awaiting more stock
